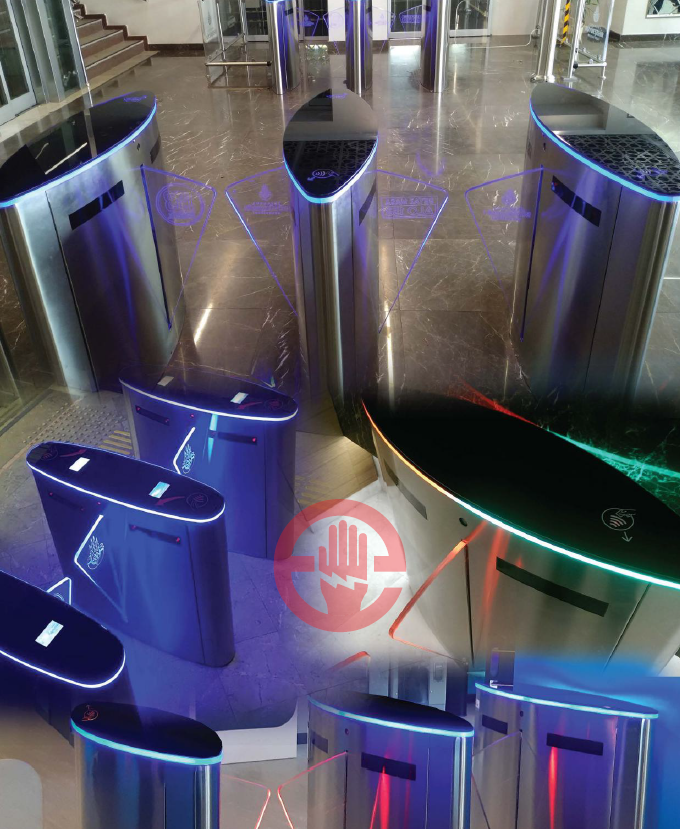

HG-SERIES (HG-100-C and HG-100-S) TECHNICAL SPECIFICATIONS :

HG-100 Series are durable products that can be used indoors. Provides access and access control in areas requiring moderate security. With
its compact design, it provides the perfect solution for assembly areas where aesthetics and elegance are important.
Barrier arm movement is provided by the Brushless DC motor with PLC control. Five optical sensors in the turnstile provide control of access
control scenarios. Speed Gate Turnstiles are suitable for intensive use. It is the perfect solution when architectural design, aesthetics and transition speed are important.

Single Wing (HG-100-S)
Turnstile main body is 304 stainless steel
Top cover is made of black glass with 10 mm tamper
HG-100-S
Configured as :
Master/Starting Unit or
Slave/Ending Unit
Provides one 550 mm wide passage together
with corresponding standard wing.

Double Wing (HG-100-C)

Turnstile main body is 304 stainless steel. The top cover is made of black glass with 10mm tamper.
HG – 100 – C
Configured as:

* Master / Center Unit and
* Slave / Center Unit

Provides two 550 mm wide passages
at each side together with corresponding
standard wings.
Main Body
Material AISI- 304 – Stainless Steel – Scotch Brite Standard Dimensions ( W x L x H ) : 30 X 100 X 98 CM

Wings:  15 mm plexiglass
Standard Passageway Width Top Cover: 50 mm (Passage Area : 225 mm + 100 mm + 225 mm)
Electrical Parameters : 100 mm Tempered glass (Upper surface of plexiglass)

Operating Voltage : 110-240 V AC 50/60Hz(+/-10%) Nominal / Max Current : 300 Ma / 1500 mA Power Consumption : 100 W
Mean Cycles Between Failure ( MCBF ) 15 M Cycles

Control Systems :
All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs Output Data (Feedback) The systems provides dry contact, NO – Normally Open,
entry – exit passage feedback by relays
Movement Mechanism : Brushless DC mOTOR
Gate Open / Close Rate : 0,3 – 1 second
Electric Control Unit : PLC Control Unit
Time Out Delay : Adjustable ; Operating Modes (7-14-21 second)
Flow Rate : 20 Passage/Minutes/Normally Standard
Working Environment : Indoor

Side Led Stripes : Passage Free-Green/Passage Closed-Red/Standby-Blue
Communication : RS 32 (Need PC Systems hardware serial port)
Operating Temperature : -20 C / +68 C
Operating Humidity : 0/+45C (RH 95% not-condensing)
IP Rating : 44
Passage Direction : Bi-Directional operation Future. Entrance-Exit
Driver
Working Environment Indoor
Flow Rate 20 Passage / Minutes / Normally Standard
Time out Delay Adjustable ; Operating Modes ( 7 – 14 – 21 second )

-20° C / + 68° C
IP Rating 44
Operating Temperature
Operating Humiditiy 0 / + 45° C ( RH 95% not-condensing )
Communication RS 232 ( Need PC Systems hardware serial port )
Passage Direction Bi-Directional operation feature. Entrance-Exit
