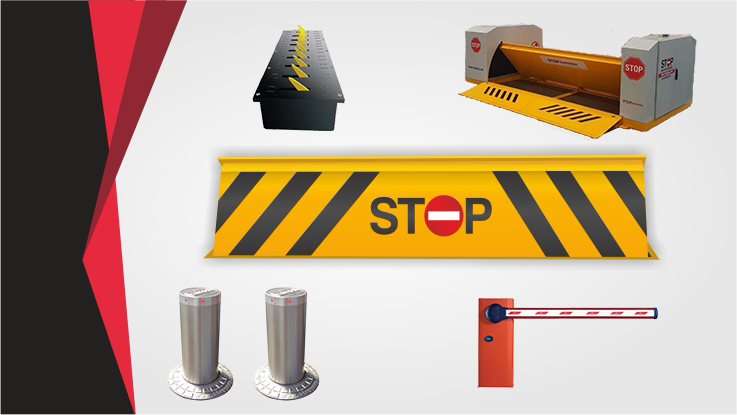

Automatic Barrier Systems

Automatic barrier systems are automatic, remotely controlled anti-terrorist systems that operate in hydraulic or electrical components, divided into low, medium and high levels. Road Blocker, Rising Bollard (Bollard Barrier), Boom Barrier, Tire Killer systems are among the most preferred automatic barrier systems and they have different types among themselves. In addition, on worldwide, we have barrier projects.

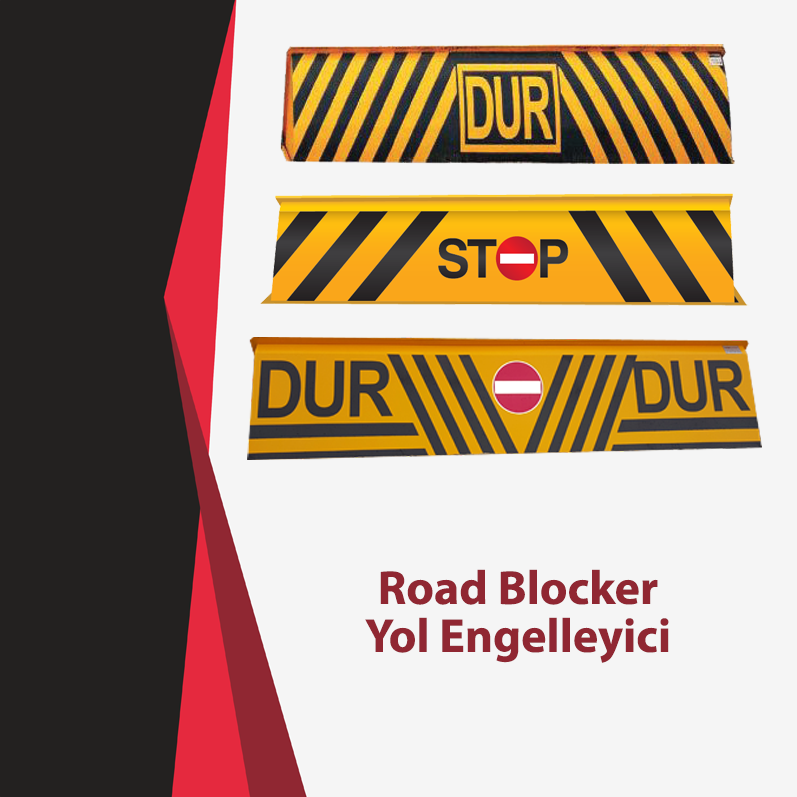

1-Road Blocker

Road Blocker is a product that can be used at the main and secondary gates of places requiring high security measures, as well as contributing to safety in real terms. It is used to create a safety barrier. Road block/Block Barrier/Road Barrier manufacturers in the world produce and assemble this system. Crash-tested road block products are the most preferred product.

Our company has been producing Road Blockers since 2010 and has references to many parts of the world. Thanks to our product’s unique twin locking and cushioning feature, it offers a unique security experience. Despite a 12000-ton truck traveling at 80 km speed, the product continues to work with its twin locking system. Thanks to its cushioning feature, the strong force of the incoming impact is absorbed.

a- What are the Road Types ?

Road Blocker products are available as anti-terror road blocker, hydraulic road blocker, telescopic road blocker, portable (mobile) road blocker, underground and on ground road blocker.

b- Road Blocker Manufacturers in the World

There are many Road Blocker producing companies or dealers around the world and it is increasing day by day. In this, the increase in terrorism in countries and the security of the location and the supply-demand effect are very important. Each product may not provide the qualities it should give in terms of the material it is used in. For this reason, care should be taken to work with reliable places. The quality of the product also guarantees that it can be used for a long time. The materials and software used are the biggest factors in this.

c-) Road Blocker Technical Specifications

Body Structure: St 37 Steel

Moving Part: ST 44 Steel (15mm)

Working Speed: 0.20m/s

Operating Voltage: 380 V 50 – 60 Hz

Operating Temperature: –25 + 60°C

Engine Power: 3 – 4 – 5.5kW

Working Frequency: 500-3000 Tours Daily

Protection Class: IP55

Impact Resistance: IWA14-1, PAS-68-ASTM2656, K12

Surface Coating: Epoxy Paint

d-) Crash Test

It is the most preferred factor in Crash Test Road Blocker products. Crash test processes performed as a result of high safety tests also reveal the post-crash quality of the product. Block Barrier, which continues to work after the collision, also reveals itself with so much penetration. There are 4 crash test centers in the world. The documents we received as a result of the test we had from Aisico/Italy are IWA, ASTM F2656 and PAS68(K-12).

e-) Projects

Mainly in the Middle East and Gulf (Bahrain, United Arab Emirates, Palestine, Iraq, Israel, Qatar, Cyprus, Kuwait, Lebanon, Syria, Saudi Arabia, Oman, Jordan, Yemen), Africa (Angola, Benin, Botswana, Burkina Faso, Burundi) , Algeria, Djibouti, Chad, Ethiopia, Morocco, Ivory Coast, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Republic of South Africa, South Sudan, Kenya, Congo, Liberia, Madagascar, Mali, Egypt, Mauritania, Mauritius, Mozambique, Nambia, Nigeria, Rwanda, Senegal, Sierra Lone, Somalia, Sudan, Seychelles, Tanzania, Tunisia, Uganda, Zambia, Zimbabwe), Turkic Republics (Azerbaijan, Georgia, Kyrgyzstan, Uzbekistan, Tajikistan, Turkmenistan), South Asia (Afghanistan, Bangladesh) , India, Iran, Pakistan, Srilanka), Europe (Albania, Belarus, Bosnia and Herzegovina, Bulgaria, Czechia, Estonia, Faroe Islands, Croatia, Montenegro, Kosovo, North Macedonia, Latvia, Liechtenstein, Lithuania, Hungary, Moldova, Poland, Serbia , Slovakia, Slovenia, Greece) and we usually target these countries in our projects.

How would you like to be our dealership?

2- Rising Bollard

Rising Bollard is a safety equipment with a stainless steel or electrostatic painted body that prevents the passage of unwanted and potentially threatening vehicles. These security systems have a storage chamber placed under the ground. In addition, there is a system that can enter this chamber and can go up to the desired height from the ground when necessary. It provides ease of use with its technical structure controlled by a key. These barriers can be designed as oval and square. Additionally, we can also call it as Bollard Barrier.

a-) Types of Rising Bollard

Our bollard barrier systems are divided into 4;

• Manual Bollard (Mechanical)
• Pneumatic Bollards
• Hydraulic Barrier
• Electromechanical Barrier

b-) Rising Bollard Specifications

Drive System: Manually controlled gas piston

Lifting Piston: 27x 500×10 (400N)

Working Continuity: 100%

Operating Ambient Temperature: -20 + 55

Security Class: IP68

Working Speed: 16cm / sec

Manual System: When unlocked, the moving part is raised by gas. The system is locked by applying pressure with the foot.

Safety System: Reflective strip on stainless steel

Flange and Barrier Cover: Cast 160 Aluminum

Body : Ø219×4 mm surface hot-dip galvanized

Movable Barrier Part: 750x170x3mm Cr304 stainless

Surface Coating: Body is hot-dip galvanized, movable part CR304 stainless steel

Installation: Hardened base perimeter cast concrete

Control: Key with lock

3- Tyre Killer/Tire Killer

Tire Killer/Tyre Killer parking lot, shopping malls, sites etc. It provides a single-way transportation at the vehicle entry-exit points of the areas and creates a fast and safe transition environment. The purpose of this system is to prevent the passage of vehicles in the opposite direction. This feature can be disabled if desired.

a-) Types of Tire Killer

• Hydraulic Tire Killer
• Underground Tyre Killer
• On Ground Tire Killer
• Double Blade Tire Killer

b-) Tire Killer Specifications

Body Structure: ST44 steel

On/Off : Manual

Security Class: Medium security

Surface Coating: Epoxy paint

Spear Thickness: 10mm

Spear Height: 65mm

Panel Size: 1000mm

 4- Boom Barrier

Boom barrier(Arm barrier) is an automatic security system that operates through an arm to prevent vehicle or pedestrian access from a designated location. Boom barrier is on of Automatic Barrier Systems. Generally, the end of the barrier gate rises in a vertical arc and into a vertical position. It is highly preferred because of the serial operation of the system.

a-) Boom Barrier Types

• Classic Boom Barrier (Arm Barrier)
• Anti Terrorism Boom Barrier (Arm Barrier)

b-) Boom Barrier Specifications

Body Structure: 20 mm. ST44 steel

On/Off: Controlled Hydraulic System (40 sec.)

Security Class : IP55

Arm Size: 350 x 175 x 2.000 – 10.000 mm.

Arm Height: 800 mm.

Body Dimension: 1500 x 1600 x 1100 mm.

Warning : Red Led, Reflective Strip

You can switch to the Stop Grup Youtube address to access the video footage of our work. You can always contact us and get detailed information.
