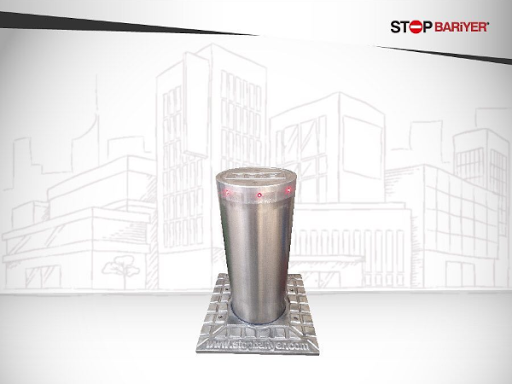

What is Rising Bollard ?

Rising Bollard is a safety equipment with stainless steel or electrostatic painted body that prevents the passage of unwanted and threatened vehicles. These safety systems have a storage chamber placed under the ground. It has a system that can enter into the chamber and can go up to the desired height from the floor if necessary. It provides ease of use with its technical structure controlled by a switch. These barriers can be designed as oval and square.

One of the most important objectives of these systems is to protect pedestrians against sudden situations by using them in the areas where the pedestrians are dense. It can be installed in front of municipal buildings or other municipal buildings, military facilities, hotels, shopping malls, parking lots and parks.

Rising Bollard Systems

Our bollard systems are divided into 4;

  1. Manual Rising Bollard (Mechanical)
  2. Pneumatic Barrier
  3. Hydraulic Barrier (Outside Control Panel)
  4. Electromechanical Barrier (Inside the control panel)

1- Manual Rising Bollard (Mechanical)

Manuel Mantar Bariyer

Manual Rising Bollard (Mechanical) flange and pontoon covers consist of Etial 160 aluminum. The body is 273 mm in diameter and above hot-dip galvanized. When the lock is opened with the key, the barrier lifts up thanks to the gas piston inside. When the barrier is closed, it is closed and locked by applying force with the foot. The pontoon part is 170 mm diameter, 5 mm thick and made of CR 304 stainless steel. Reflective tape or red LED light is attached as a security.

Product Photos

Technical Specification

Drive System Gas Spring
Lifting Piston 27 x 600 x 10 (500N)
Working Continuity %100
Operating Ambient Temperature -20 +55
Protection Class 55
Impact Resistance K4 Medium Safety
Speed 2 /4
Package Dimensions 820 x 400 x 400mm
Manual System When the lock is opened, the gas pressure and the moving part increase. It is locked again by applying force with foot.
Safety System Safety System Honeycomb reflective tape on stainless satine
Flange and Barrier Cover Etial 160 aluminum
Body Hot dip galvanized over 273 mm diameter
Moving Obstacle Part 750x170x5 m CR304 stainless steel
Covering Body hot-dip galvanized, movable part CR 304
Assembly Pebble to floor, installation of concrete around
Control Square lock with key
Warranty Period 2 years

2- Pneumatic Barrier

Pnömatik Mantar Bariyer

Pneumatic Barrier 220V mains voltage and air pressure working with electromechanical components, remote control is a technical construction element. The red LED light is waterproof 30 mm wide. It has 3 mm thick plexiglass and 1 mm thick stainless circle. The desired letter can be printed on stainless steel. The unit is on the outside and is a barrier system in a separate enclosure. The movable part has a diameter of 220 mm, a thickness of 14 mm and a stroke length of 500 mm.

Technical Specification

Supply voltage 220V 50 Hz
Compressor Voltage 220V 50 Hz
Compressor Air Tank 50/100 /100/200/200/200
Working Pressure min./max 20 /180
Drive System Pneumatic
Lifting Piston 63×500
Pneumatic Hose 8×10 Polyamide
Work Continuity %100
Operating Ambient Temperature -20+55
Protection Class 55
Impact Resistance K4 Medium Security
Speed 3/8
Package sizes For Single Barrier 820x400x400 mm
Manual System Available in Unit
Safety System Loop sensor, safety photocell, LED light
Hydraulic Unit Cabinet 600 x 1300 x 1000 (Width x width x height)
Body 273 mm diameter ST37 5mm steel
Moving Obstacle Part 220 mm diameter. ST44 14 mm steel over 2 mm CR304 rust. steel
Covering All product is galvanized, movable obstacle on galvanized



3- Hydraulic Barrier (Outside Control Panel)

Hidrolik Mantar Bariyer

Hydraulic Barrier 220V mains voltage, as well as hydraulic oil pressure, electro-mechanical components, remote control is a technical construction element. There is a storage chamber placed under the ground. Stainless steel or electrostatic painted body. The red LED light is waterproof 30 mm wide. It has 3 mm thick plexiglass and 1 mm thick stainless circle. The desired letter can be printed on stainless steel. The unit is a barrier system located outside in a separate enclosure cabinet. The movable part has a diameter of 220 mm, a thickness of 14 mm and a stroke length of 500 mm.

Product Images

Technical Specification

Supply Voltage 220 V 50 Hz
Motor Voltage 220 V 50 Hz
Motor Power 0.75 (Within each barrier unit)
Operating Pressure min./max. 20 /180
Drive System Hydraulic
Lifting Piston 50 x 600 x 20
Hydraulic Hose R2 (Double helix) 400 Bar
Hydraulic Oil Number 46
Work Continuity %100
Operating Ambient Temperature -20 +55
Protection Class 55
Impact Resistance K4 Medium Security
Speed 3 / 8
Package sizes Single Barrier for 820x 450 x 450 mm
Safety System Loop sensor, safety photocell, LED light
Hydraulic Unit Cabinet None (Hydraulic unit in the barrier)
Body ST37 5mm steel with 320 mm diameter
Moving Obstacle Part 237 mm diameter. ST 44 mm steel over 22mm CR 304 rust. steel
Covering All product galvanized, 2 mm CR 304 stainless steel over movable obstacle galvanized
Assembly Pebble to floor, concrete around
Control Microprocessor card, remote control and receiver
Warranty Period 2 years

4- Elektromechanical Barrier (Inside the control panel)

Elektromekanik Mantar Bariyer

Electromechanical Barrier It is a technical construction element with electromechanical components that can be controlled remotely and works with 220V mains voltage and hydraulic oil pressure. There is a storage chamber placed under the ground. Stainless steel or electrostatic painted body. In addition, it has a structure that accommodates the whole system in its internal chamber (without outdoor unit). Hydraulic Mushroom Barrier Hydraulic Unit is in itself. It is operated only by electrical connection. The movable part is made of 2 mm CR304 stainless steel with a diameter of 274 mm and the main body with a diameter of 324 mm. In standard production, the moving part stroke is 500 mm.

Usage areas

They are used for the regulation of vehicle and pedestrian traffic in sensitive areas requiring security, in the entrances of public, private institutions and organizations, in the entrances of sites, hotels and car parks, and in residential areas.

Mantar Bariyer Montaj Görüntüleri

Rising Bollard Barrier Prices

Prices may vary according to product size, desired product and detail.
